Description

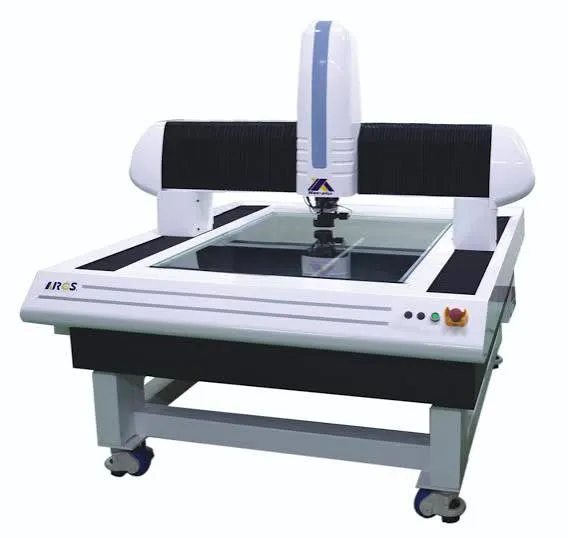

ARCS Precision Technology MAX-PLUS 6272 Automatic Non-Contact Video Measuring System Manufacturer: ARCS Precision Technology Model: MAX-PLUS 6272 Year: 2018 Condition: Used Stock Number: 669 Specifications X/Y Axis Travel: 620 × 720 mm Z Axis Travel: 200 mm Stage Size: 840 × 1180 mm Stage Load Capacity: 25 kg Maximum Travel Speed: 180 mm/sec Dimensions: 1780 × 1500 × 1700 mm Net Weight: 1200 kg Magnification: 0.7×–4.5× (17.5×–112.5×), Standard Zoom Lens Illumination: Adjustable Surface and Contour Illumination Linear Scale: 0.5 µm on X, Y, and Z Axes Repeatability: 2 µm on X and Y Axes Motor: X, Y, Z Servo Motors Base: Precision Granite Table Power Supply: Single Phase, AC 220–230 V, 50/60 Hz Supported Software: SI-901 Equipment Details Equipment Type: Automatic Non-Contact Video Measuring System Category: Metrology / Inspection Subcategory: Metrology Description The ARCS Precision Technology MAX-PLUS 6272 is an automatic non-contact video measuring system designed for high-precision dimensional measurement and inspection. The system features a large 620 × 720 mm X/Y travel range, 200 mm Z-axis travel, precision granite table, servo-controlled X/Y/Z axes, and 0.5 µm linear scales. It is equipped with a standard 0.7×–4.5× zoom lens, providing an effective magnification range of 17.5×–112.5×. Adjustable surface and contour illumination supports accurate inspection and measurement of a wide range of components. The MAX-PLUS 6272 is suitable for semiconductor inspection, electronics, precision manufacturing, tooling, quality control, and dimensional metrology applications.
