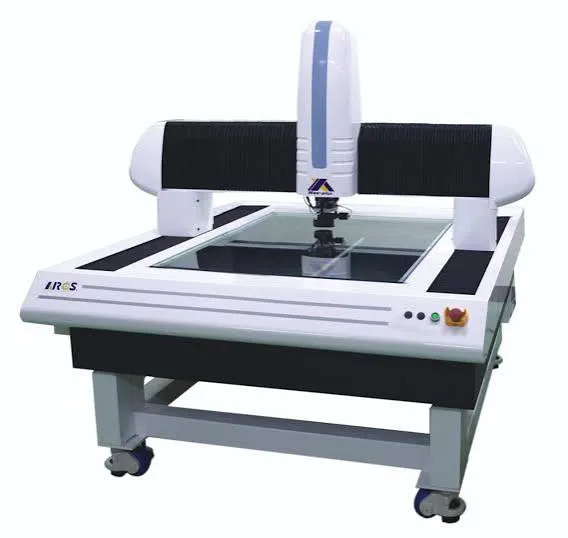

ARCS Precision Technology MAX-PLUS 6272 il

Description

ARCS Precision Technology MAX-PLUS 6272 Automatic Non-Contact Video Measuring System Manufacturer: ARCS Precision Technology Model: MAX-PLUS 6272 Year: 2018 Condition: Used – Like New Machine Status: Under Power Country of Manufacture: Taiwan Location: Southeast Asia Specifications X/Y Axis Travel: 620 × 720 mm Z Axis Travel: 200 mm Stage Size: 840 × 1180 mm Stage Load Capacity: 25 kg Maximum Travel Speed: 180 mm/sec Dimensions: 1780 × 1500 × 1700 mm Net Weight: 1200 kg Magnification: 0.7×–4.5× (17.5×–112.5×) Standard Zoom Lens Illumination: Adjustable Surface and Contour Illumination Linear Scale Resolution: 0.5 µm on X, Y, and Z Axes Repeatability: 2 µm on X and Y Axes Motor: X, Y, Z Servo Motors Base: Precision Granite Table Power Supply: Single Phase, AC 220–230 V, 50/60 Hz Supported Software: SI-901 Equipment Details Equipment Type: Automatic Non-Contact Video Measuring System Category: Metrology / Inspection Subcategory: Metrology Description The ARCS Precision Technology MAX-PLUS 6272 is a large-travel automatic non-contact video measuring system designed for high-precision dimensional measurement and inspection applications. The system features a large 620 × 720 mm X/Y travel range, 200 mm Z-axis travel, precision granite base, servo-controlled X/Y/Z axes, and high-resolution linear scales. Its standard zoom lens provides magnification from 0.7× to 4.5×, with an effective magnification range of approximately 17.5× to 112.5×. Adjustable surface and contour illumination supports accurate inspection of a wide range of components. The machine is in excellent, like-new condition and is currently under power. It is suitable for precision manufacturing, semiconductor inspection, electronics, tooling, quality control, and dimensional metrology applications.
